Delta EV Quick Charger

Delta EV Quick Charger

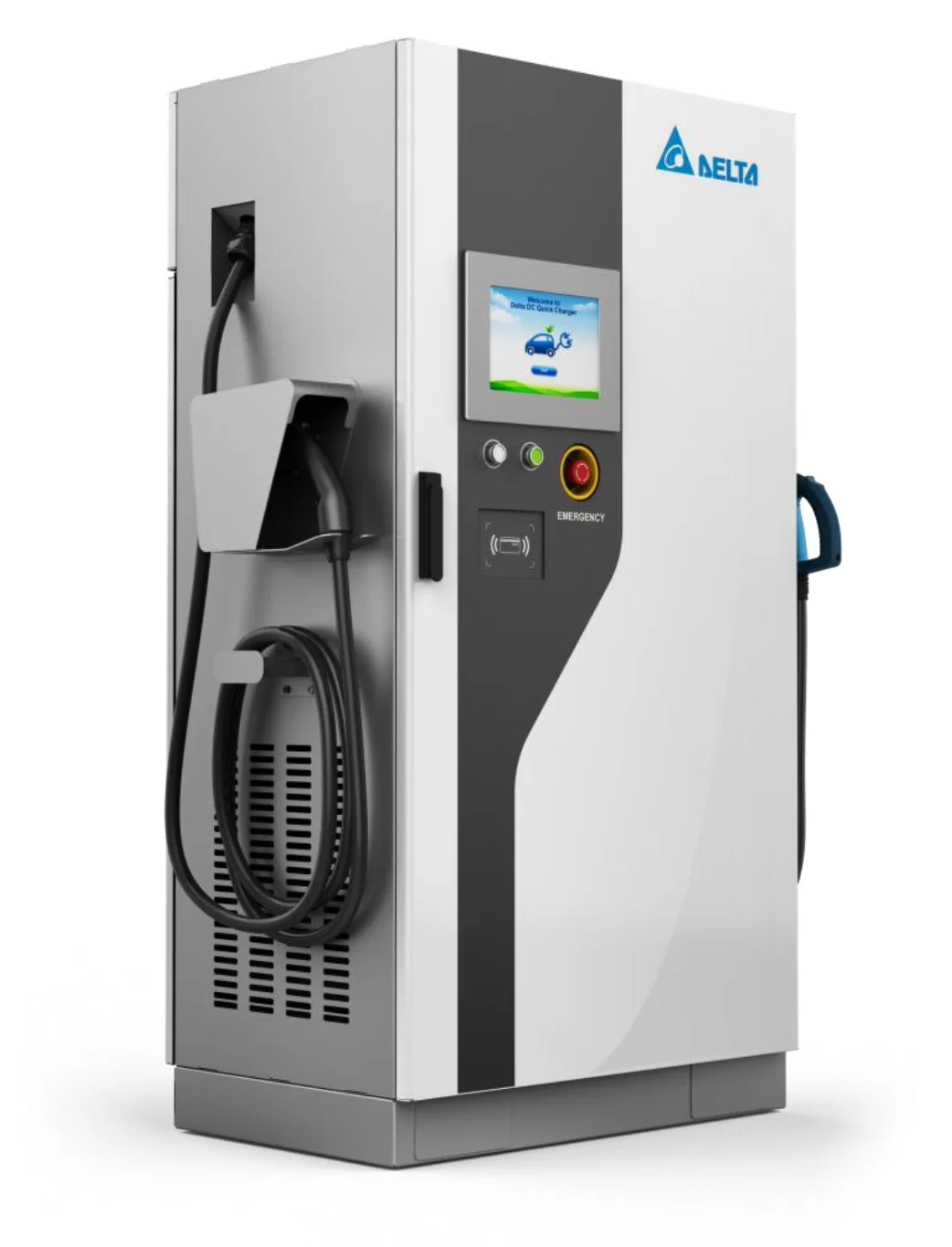

Delta DC Dual charger
Delta DC Dual charger

The Delta EV Quick Charger is the top choice to power battery electric vehicles (BEV) today. It is a CHAdeMO standard certified charger with high efficiency power conversion, large LCD display, user authentication card reader, as well as multiple communication options.

Key Features:

  • SAE DC / CHAdeMO dual charging ports
  • DIN 70121 / CHAdeMO compliance
  • Max. output power: 50kW
  • Output voltage range: 200-500vdc (SAE DC); 50-500Vdc (CHAdeMO)
  • Max. 94% power efficiency
  • RFID card reader for user authentication
  • Network connectivity (OCPP or proprietary protocol)
  • IP55 protection and IK10 vandal-proof casing
